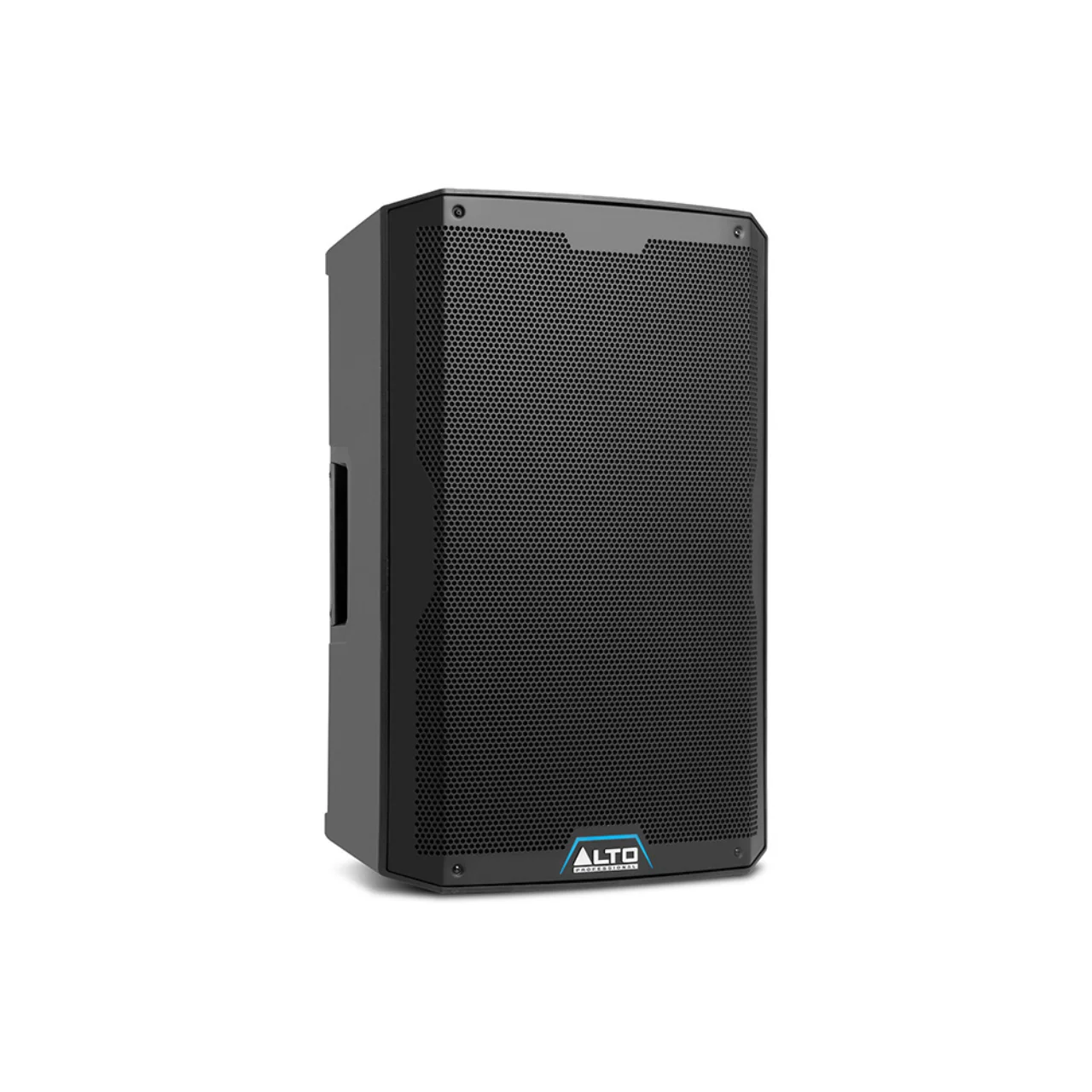

ALTO – TS314

Description

General Specifications

• Output Power:   2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)
• Low-Frequency Driver:  15.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω.
• High-Frequency Driver:  1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω.
• Crossover Frequency:  2 kHz
• Maximum SPL:  135 dB (peak), 132 dB (continuous) (dB-SPL @ 1 m)
• Frequency Response:  44 Hz – 20 kHz (+/- 3 dB)
• Frequency Range:  33 Hz – 20 kHz (-10 dB)
• Horn Coverage:  90° horizontal x 60° vertical (nominal)
• Connectors:  (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input
• Input Impedance Line:  10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K
• Line Gain/Volume Control Range:  -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
• Mic/Inst. Gain/Volume Control Range:  -∞ to +50 dB
• USB Charging Port:  5V 2.1A
• Controls:  Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
• Indicators:  (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
• Power Connection:  IEC
• Voltage:  100-120V, 50/60Hz; 220-240V, 50-60Hz
• Consumption:  1100W
• Fuse:  100-120V T15AL AC250V; 220-240V T6.3AL AC250V
• Protection:  Electronic clip, thermal, and transducer overdrive protection
• Enclosure:  Injected Molded Enclosure and Perforated Metal Grille
• Mounting/Installation:  Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
• Operating Temperature:  -10°C to 45°C (14°F to 113°F)
• Dimensions:  (height x width x depth) 25.3” x 16.4” x 15.8” / 643 x 417.5 x 402 mm
• Weight:  38.0 lbs. / 17.2 kg
