ALTO – TS318S BASSBIN

Description

2000-WATT 18″ POWERED SUBWOOFER
2000 watts of peak power output
High-efficiency Class D amplifier
Transducer: 18-inch with 3-inch high-temperature voice coil
(2) XLR+1/4-inch combo inputs + (2) balanced XLR line outputs
XLR outputs, with six discreet DSP output modes for ideal matching with companion full-range speaker
Polarity Reverse switch and Extended LF switch for increased EQ control
Electronic clip, thermal and transducer overdrive protection
Rugged, internally-braced front-ported MDF cabinet with integrated 36mm pole socket
Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
Designed and tuned in the USA

Output Power: 2000 W peak, 1000 W continuous
Amplifier: High-efficiency Class D amplifier
Transducer: 18” (457 mm) woofer, 3” (76 mm) voice coil
Frequency Response: 44Hz – 86 Hz (- 3 dB)
Frequency Range: 35HZ – 97Hz (-10 dB)
Maximum SPL: 133 dB (@ 1 m) 131 dB continuous (dB SPL @ 1 m)

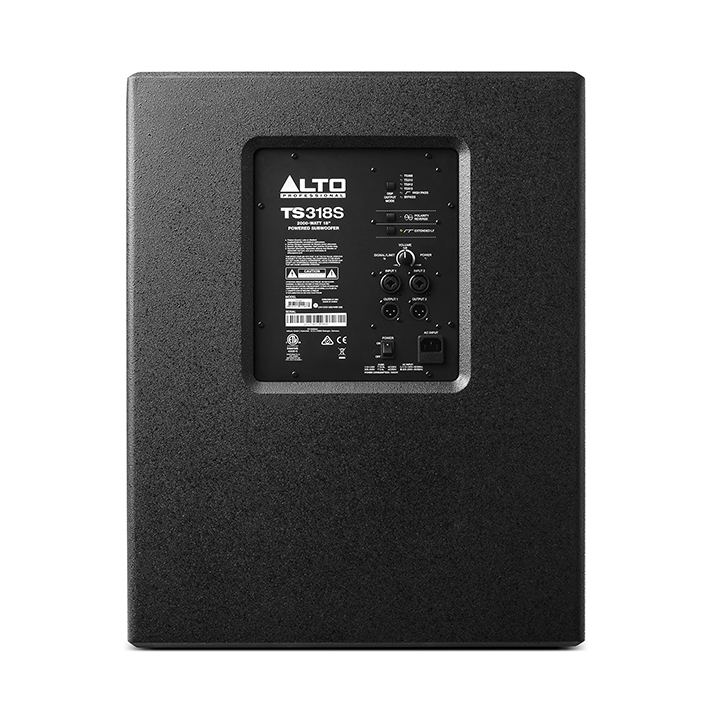

Connections: (2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input
Input Level: Line +4 dBu (nominal)
External Controls: Volume control, DSP output mode switch, polarity-reverse switch, extended low-frequency switch, power switch
Indicators: Signal/clip limiter LED, six DSP output mode LEDs, polarity-reverse LED, extended low-frequency LED, power switch LED
Electronic Protections: Electronic clip, thermal and transducer overdrive protection
Enclosure: Internally braced MDF cabinet; 36 mm mounting pole socket on top panel
Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Consumption: 1000 W Fuse: T10AL AC250V (100–120 V) or T5AL AC250V (220–240 V)
Dimensions (H x W x D): 26.8” x 21” x 24.7” / 680mm x 533mm x 628mm
Weight: 86.4 lbs. / 39.2 kg
