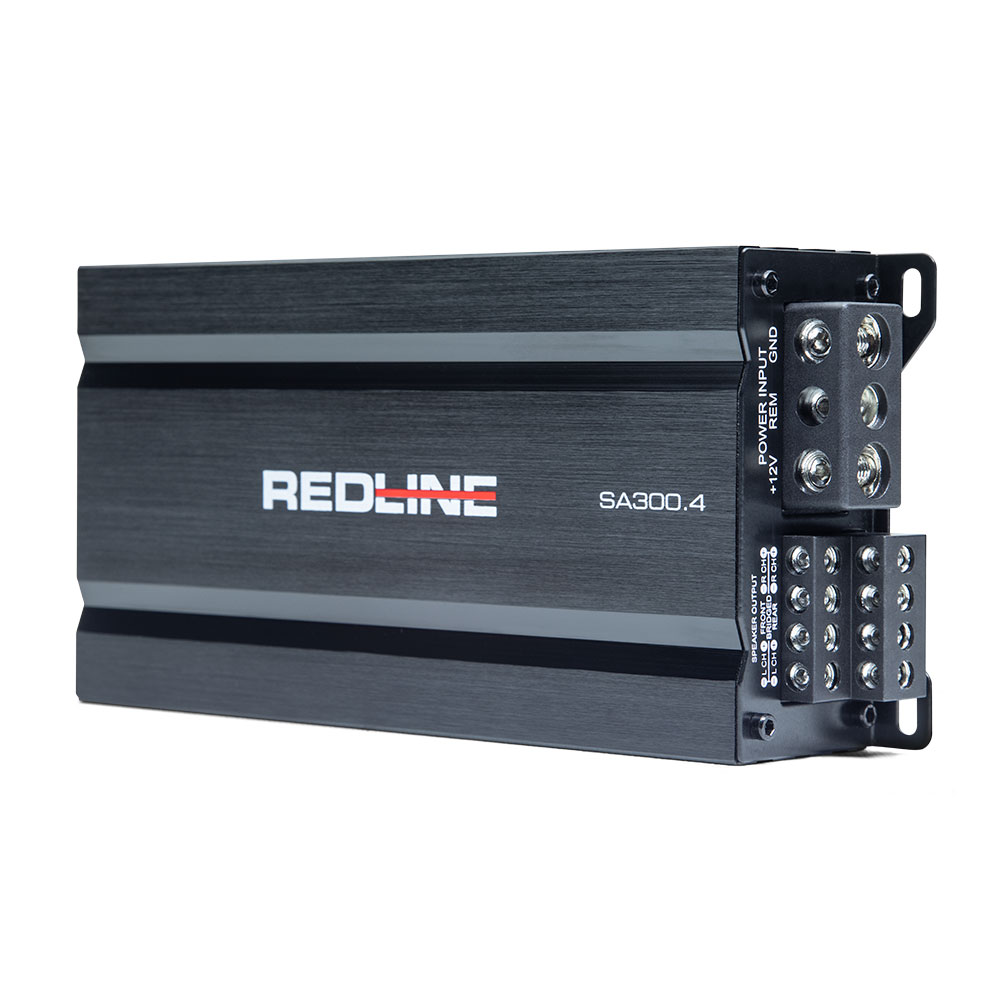

DIGITAL DESIGN – RL-SA300.4 4CHANNEL MINI AMP

Description

• Variable 12dB Crossovers
• Class D Topology
• Hi Level Inputs

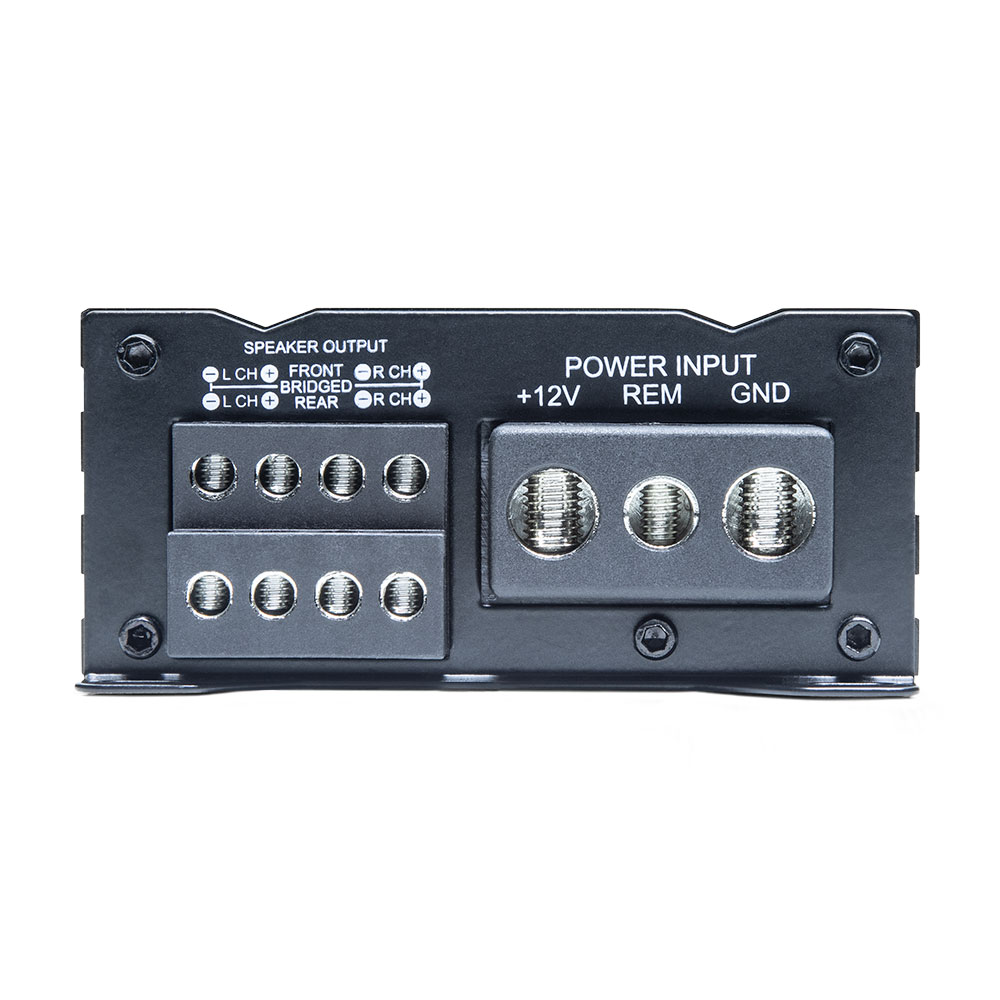

• Set Screw Power and Speaker Terminals

RL-SA300.4

• Operating Voltage: 10 – 16
• Test Voltage: 14.4
• Output Channel(s): 4
• Continuous Wattage @4ohm: 4 x 65 / 2 x 120
• Continuous Wattage @2ohm: 4 x 75
• Dynamic Wattage: 600
• Max Current Draw (Amps): 30
• RCA Input Voltage Sensitivity: 6 – 2.5
• High-Level Input Voltage Sensitivity: 20 – 1.1
• RCA Input S/N: > 85
• Damping Factor: > 70
• THD: < 0.1%
• Frequency Response (Hz): 10 – 30k
• Sub-Sonic Filter: 35 – 250
• Low-Pass Filter: 35 – 250
• ZVL Input: No
• Pass Thru Output: No
• Power Wire Gauge: 4
• Speaker Wire Gauge: 12
• Dimensions (Inches): 7 x 3.8 x 1.69
• Dimensions (MM): 180 x 96 x 43
