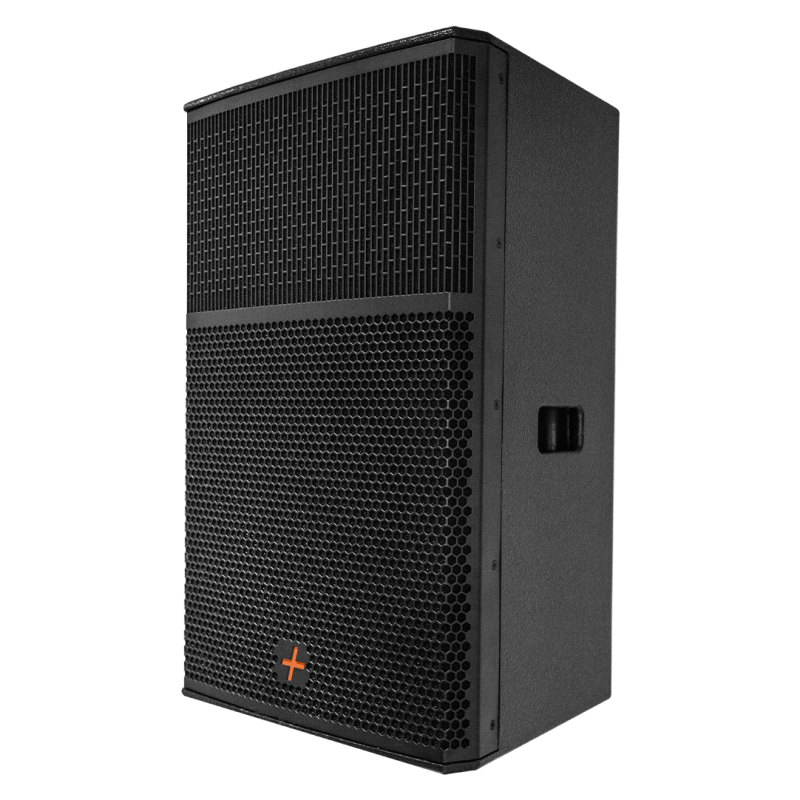

HYBRID+ ALTIUM 15 15″ ACTIVE SPEAKER

Description

Full range 15″ two way, Self-Powered Speaker with Bluetooth 5.0 Audio Player, DSP frequency curve corrected and limiter protected.

• 2000W Peak Power
• 15″ Celto Acoustique Driver
• Dual Channel Power Amplifier
• DSP with Wi-Fi Control
• Bluetooth 5.0 Enabled
• Balanced Mic/Line Inpuit

The ALTIUM15 is the latest exciting offering from Hybrid+. Designed by Celto Acoustique in Spain, extensive research and design has gone into producing this product.

Control of the DSP functions is possible using a Wi-Fi connection requiring no app installation. Any smart Wi-Fi enabled device can be used to control all functions. Alternatively all functionality can be controlled using the rotarty encoder and dual colour display.

Four factory-loaded presets have been carefully engineered and selected to suit most applications, from back-round and vocal applications to loud SPL electronic dance music.

Cabinet Construction:

• 1mm precision CNC manufacturing process
• Braced 15mm Birch plywood
• 4 Coats of Textured Half Gloss Black Paint, UltraTex V3 (USA)
• Pressurized Tongue and Groove assembly using Franklin Multibond Glue (USA)
• Braced 1.5mm powder-coated, dual tone design grille
• Anti-corrosion stainless steel machine screws and nuts throughout the cabinet
• Internally constructed metal cup handles
• Seven M8 fly points (3 Top, 3 Bottom, 1 Back)
• Dual angle fibre reinforced ABS 35mm

15″ LF Driver:

• Custom designed and manufactured by CELTO Acoustique exclusively for Hybrid+
• Model: 15MB354-4
• Power rating: 1400W Peak, 700W Program, 350W rms
• Impedance: 40
• Aluminium Die-cast basket
• Voice Coil: 2.5″ (63mm) IN-OUT Copper (350°C EIC Grade)
• Ribbed fibre loaded paper cone with triple roll surround
• Magnet: Ferrite (170 x 20mm)
• Individual QC tolerance within +/- 1.5dB on frequency response
• Individual QC to withstand +15% of rated power (400W rms)

1″ HF Diaphragm

• Model: PCD440B
• Power rating: 200W Peak, 100W Program, 50W rms
• Exit: 1″ (25mm) • Impedance: 80
• Diaphragm: Space grade Ketone Polymer (UK)
• Unlike Titanium, Ketone Polymer doesn’t break or crack with time, offering longevity in sound preservation, reliability and lower distortion.
• Voice Coil: 1.7″ (44mm) Flat Aluminium wire (Japan) Magnet: Ferrite (115mm)
• Electronic Crossover: 1.8KHz, 24dB/Octave phase-corrected
• Individual QC tolerance within +/- 1.5dB on frequency response
• Individual QC to withstand +15% of rated power (58W rms)

Class D Amplifier:

• Dual channel power amplifier (LF and HF)
• Employs latest single chip technology. for added reliability
• Rated power: 2 x 1260W Peak, 2 x 630W Program, 2 x 315W rms @ 4Ohm
• THD+N: 0.006% – 1W
• SNR: 112dB
• Dynamic Range: 113dB
• 100% full load burn-in test before assembly to module

Digital Signal Processing:

• 1lN – 2OUT DSP
• 4 User selectable presets
• Preamp DSP Resolution: 56bits
• Converters: 24bits/48KHz with 104 SNR
• Crossover Slopes: up to 48dB/octave
• Crossover filters: Linkswitz-Riley, Butterworth & Bessel
• EQ: 19 x Full parametric EQ
• EQ Types: PEQ, Low Shelve, High Shelve, Notch Filter, High Pass and Low Pass
• Time Alignment: 17ms/Output
• Dual protection compressor- limiters
• Phase correction
• Balanced Line/Mic Input
• Two colour OLED Display and rotary encoder
• Bluetooth 5.0 Audio Player
• 32bit MCU control
• Wi-Fi DSP control – no app installation needed
