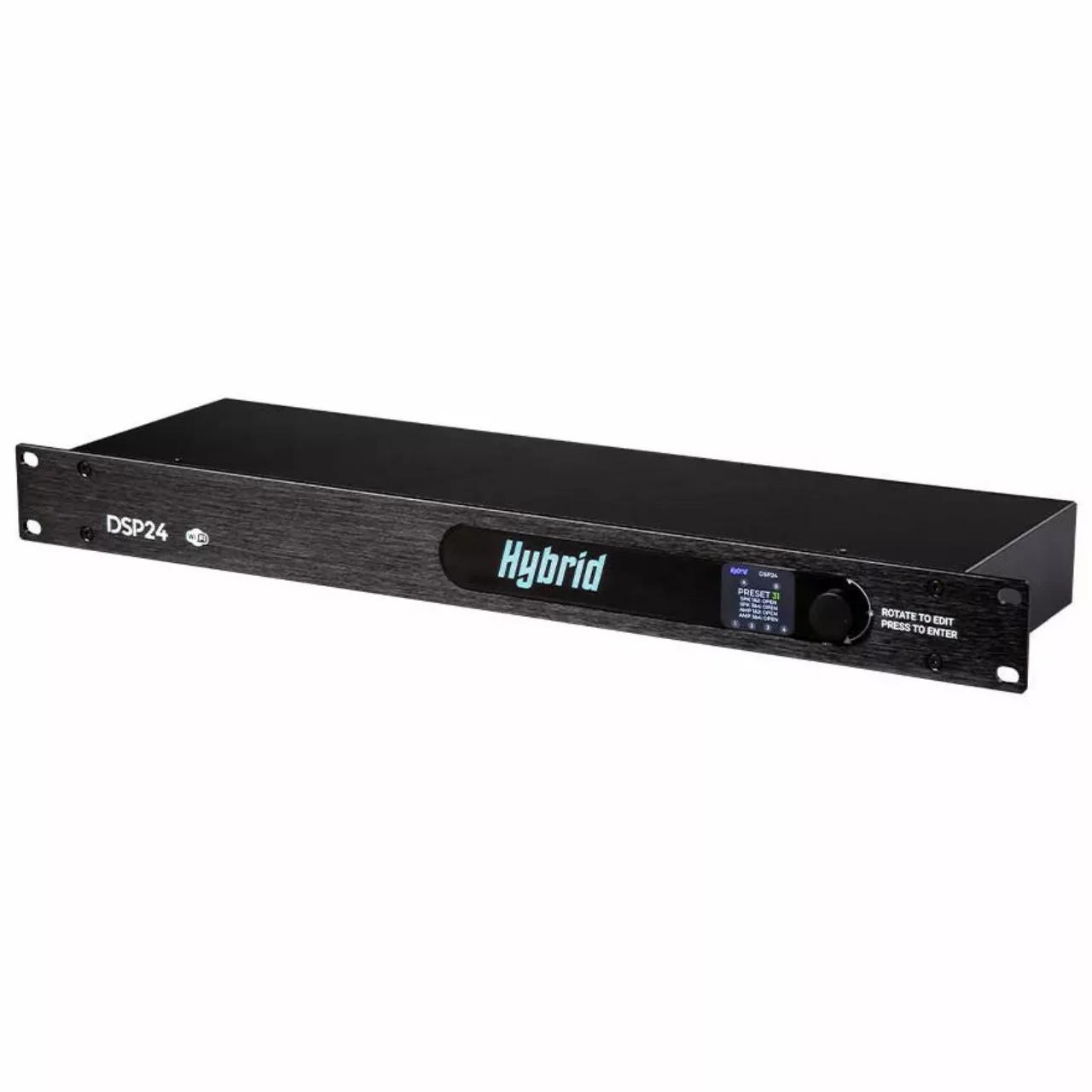

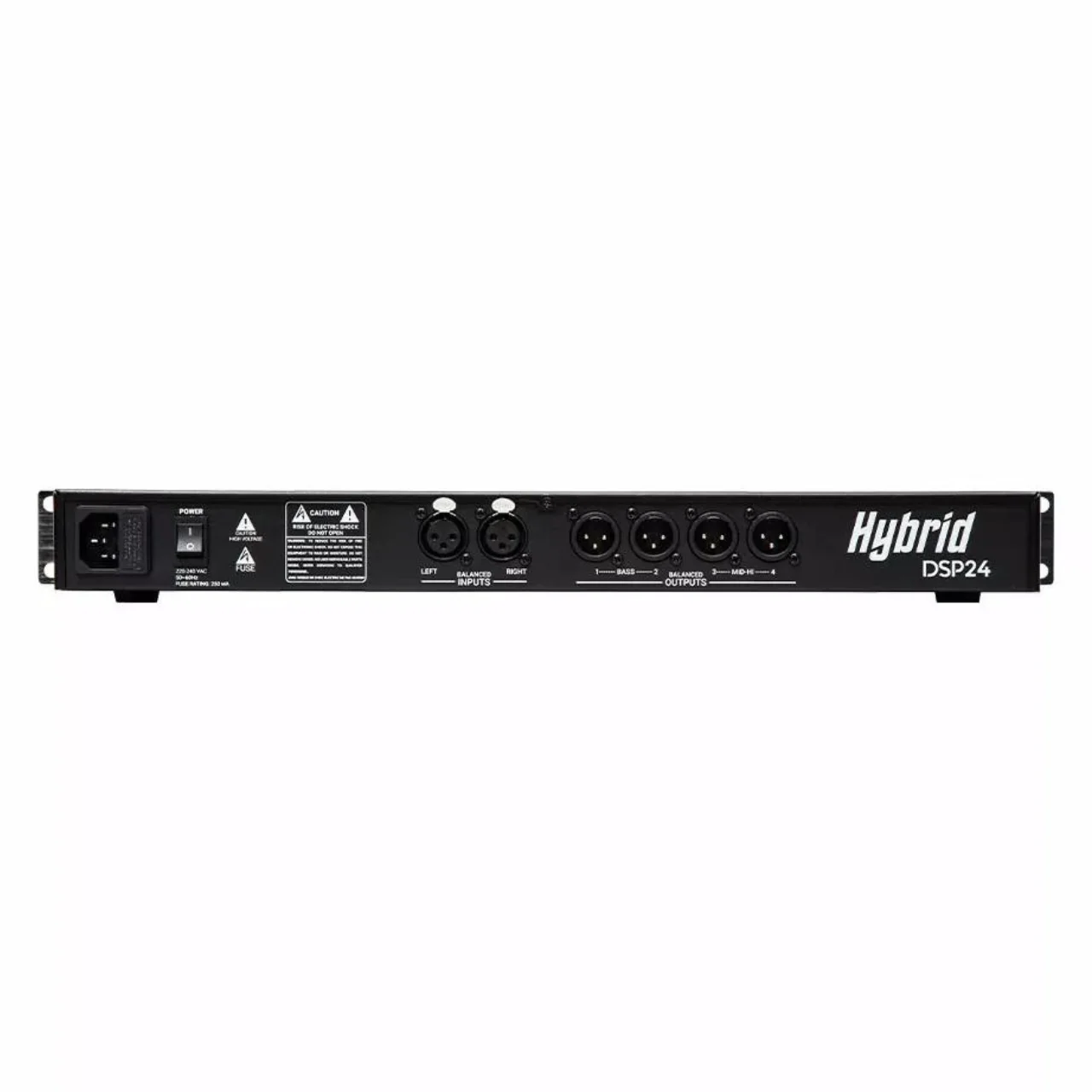

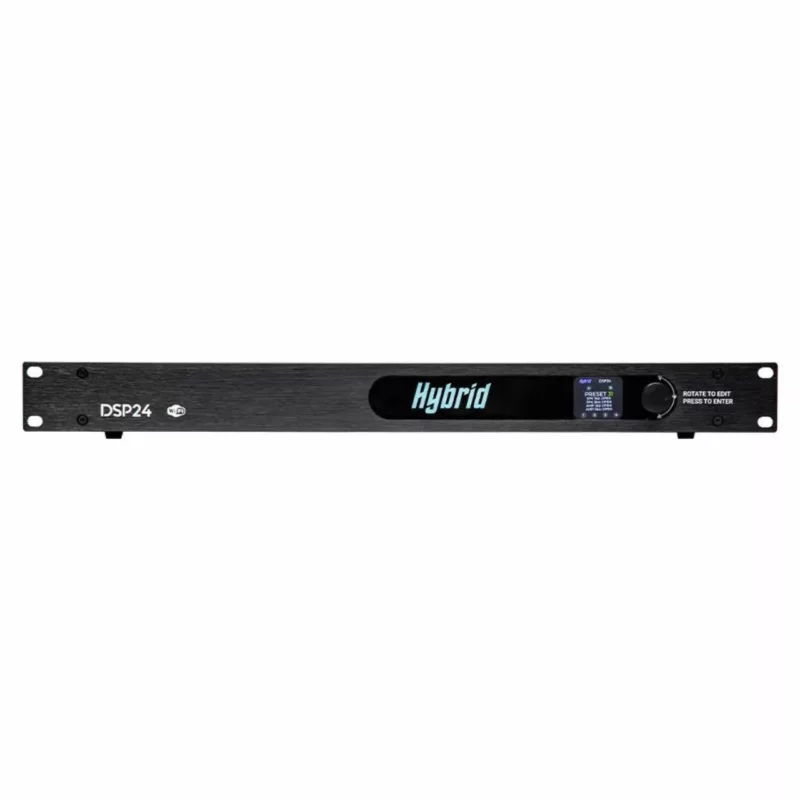

HYBRID – DSP24

2 IN/4 OUT PROCESSOR

The ideal replacement for conventional analogue processors, such as crossovers, graphic equalisers and limiters, with password protection.

3 × PARTIALLY EDITABLE ONBOARD PRESETS

Require no technical knowledge or experience to set up.

27 × PRE-LOADED NON-EDITABLE HYBRID PRESETS

Set up to work with the majority of Hybrid and Hybrid+ amplifier and speaker combinations. Requires no technical knowledge or experience.

2 × FULLY EDITABLE PRESETS

Can be edited with software accessed from PC or smart device.

FEATURES

• Linked left and right inputs
• 4 × input PEQs, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
• Outputs 1 and 2 linked by default
• Outputs 3 and 4 linked by default
• HPF or LPF with 6, 12, 18 and 24 dB/oct slopes
• Crossover types include Linkwitz–Riley, Butterworth or Bessel filters
• Linked outputs 1 and 2 can switch between PEQ or 30-band graphic EQ
• Linked outputs 3 and 4 can switch between PEQ or 30-band graphic EQ
• 8 × PEQs for linked outputs 1 and 2, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
• 8 × PEQs for linked outputs 3 and 4, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
• Time-alignment up to 15 ms on linked outputs 1 and 2 and linked outputs 3 and 4
• Linked outputs 1 and 2 and linked outputs 3 and 4 have each have a limiter (attack, release and threshold)
• Independent phase invert for all outputs
• Independent mute function for all outputs
• Electronic Earth-lift
• Utilities menu allows you to load the preset from a device, save the preset to a device, write the preset, change and save the password, upgrade the firmware and change the LED logo’s colour and intensity
