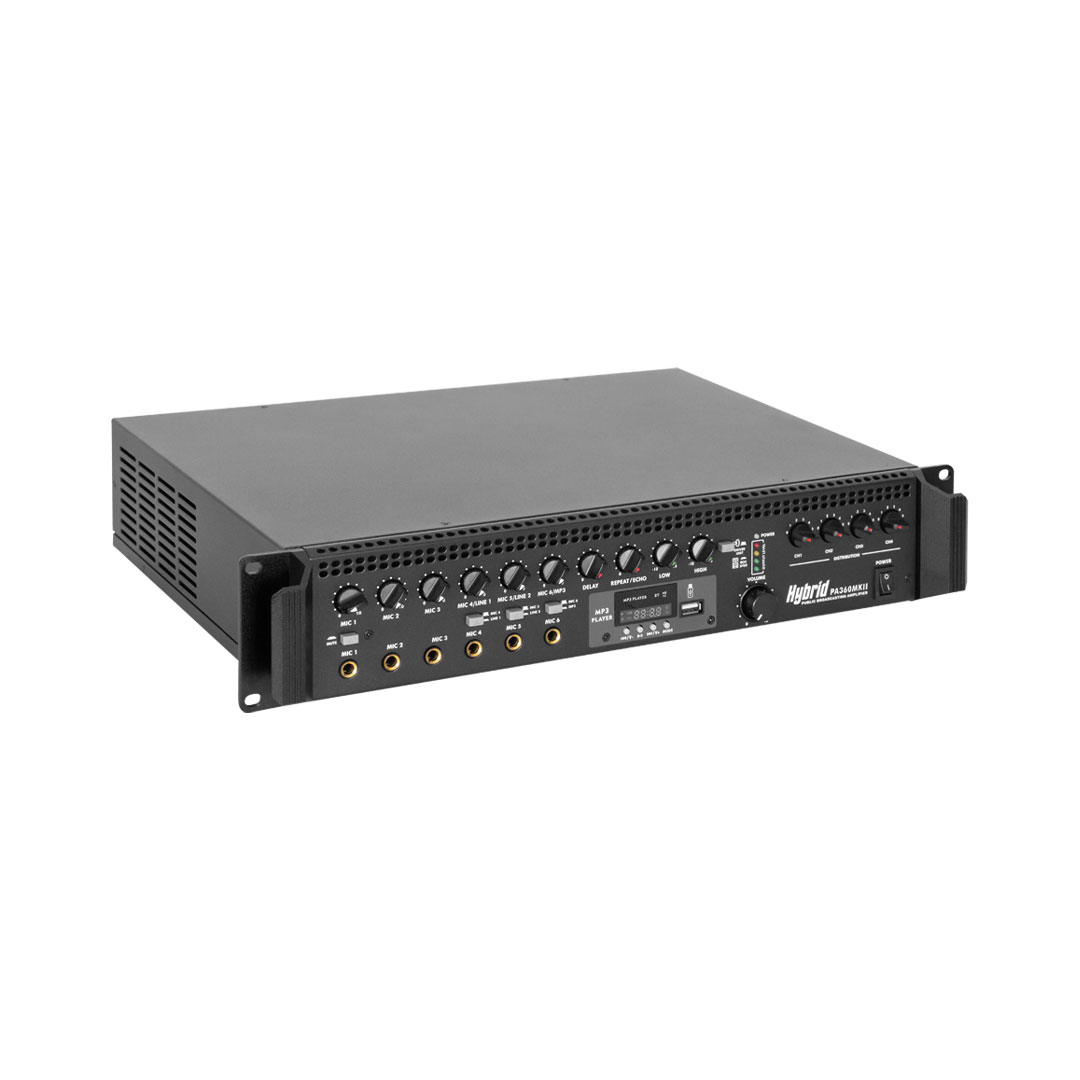

Hybrid PA360 MKII

Description

Overview
Compared to an analogue amplifier, the same-level Class-D amplifier is more portable, weighs 60% less and has a 40% lower energy consumption. This series also has over-temperature, over-voltage, over-current and short circuit protection, an input signal limit and an output current over-current limit.

Features
6 MIC inputs, one with a priority function
2 LINE inputs
2-band EQ
Digital effects processor
Built-in MP3 with USB, FM and Bluetooth functionalities
Outputs include an 8–16Ω output, a 70V output, a 100V output
4-zone 100V switched level output control
Balanced LINE level output

Specifications
Rated output power: 360W
2-band EQ: A 100Hz band and a 10kHz band, both with ±15dB adjustment
Frequency response: 60Hz–16kHz ±1dB
THD (1 kHz): ≤ 0.5%
S/N MIC ratio for inputs 1–6: < −108dB
S/N LINE ratio for inputs 1–2: < −88dB
MIC inputs 1–6: −50dB, 600Ω, unbalanced
LINE inputs 1–2: −10dB, 10kΩ, unbalanced
Power supply: 220–240Vac, 50–60Hz

NOTE: When the 8–16 Ωoutput is used, the maximum available power is 70% for either the 70V output or the 100V output.
