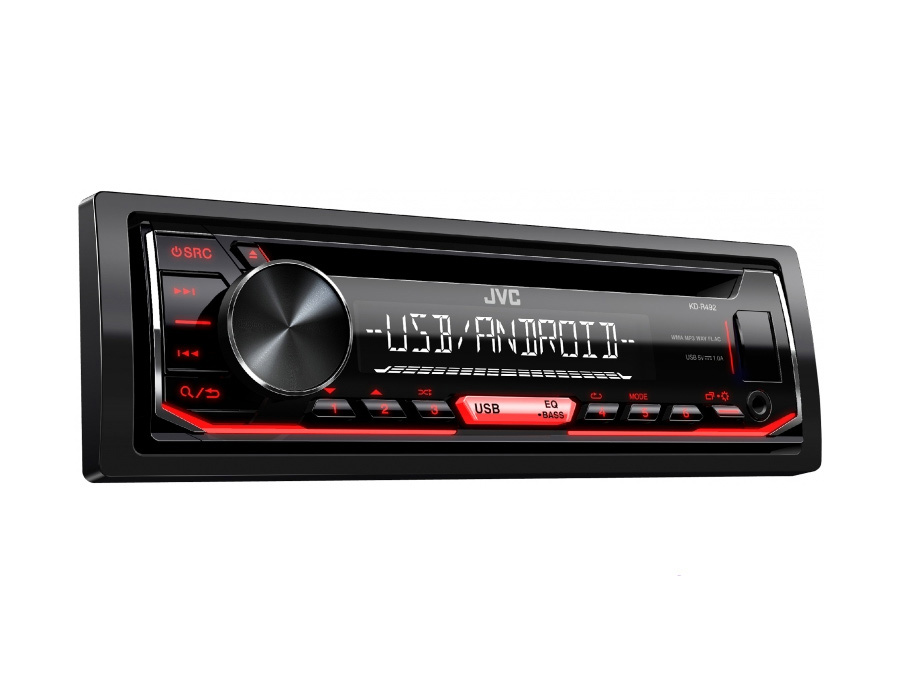

JVC – KD-R492M CD Receiver with Front USB/AUX Input

Features

Manufacturer

JVC

Model Number

2-297 KDR492

KD-R492
Display
Display Type
VA LCD Display
LCD Color
White
Key Color
Red
Spanish Text Display Compatible
Yes
Auto Dimmer
Yes
Brightness Control
Yes
Media Playback
MP3 Compatible with Tag
CD / USB
WMA Compatible with Tag
CD / USB
WAV Compatible with Tag
USB
FLAC Compatible with Tag
USB ( Up to 48kHz/16bit )
Android Control
Android Music Playback
Yes (AUDIO MODE & AUTO MODE)[1]
USB
Position
Front
USB Power Supply
Yes (1A)
Drive Change Mode for Mass Storage Class
Yes
Inputs and Outputs
AUX Input
1 (Front)
Line Output Terminals (Pair)
1 Pair (Rear/Subwoofer Selectable)
Pre-Output Level
2.5V
Subwoofer Output with Level/Frequency Control
Yes (Level -8 – +8)
Subwoofer Output Level
2.5V
Tuner
Radio Data System (RDS)
Yes
Tuner Type
Digital Processing Tuner
Yes
Preset Stations
18FM + 6AM + 12SW
Strong Station Memory (for FM)
Yes
Radio Timer
Yes (Once/Daily/Weekly)
Tuner Preset Memory (for power disconnection)
Yes
FM
Frequency Range
87.5 – 108.0MHz
AM
Frequency Range
(MW) 531 – 1,602kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
Audio
Maximum Power Output
50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
Full Bandwidth Power (at less than 1%THD)
22W x 4
MOS-FET Amplifier
Yes
Subwoofer Direct Connection (Mono Lch)
Yes
EQ
Yes (3-Band Parametric EQ)
Preset EQ
Yes (15-Preset)
Digital Track Expander
Yes
Bass Boost
Yes
Loudness Control
Yes (Off/Low/High)
High-Pass Filter/Low-Pass Filter
– /Yes
drvn EQ
Yes
General
Detachable Face Panel
Yes
Carrying Case
Yes
Wireless Remote Control
Yes
Steering Remote Control Ready
Yes
Dimensions (W x H x D)
Installation Size
182 x 53 x 158mm
Weight
1.2kg
Unit weight in individual package
1.5kg
