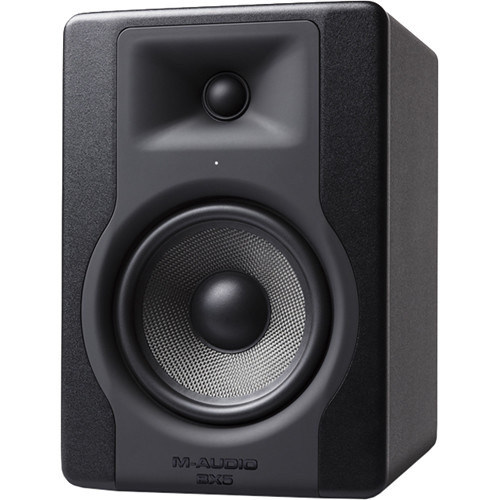

M-Audio’s BX5-D3

TYPE – 2-way near-field studio reference monitors
LOW FREQ. DRIVER – 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded
HIGH FREQ. DRIVER – 1 inch (25mm) magnetically shielded natural silk dome
FREQUENCY RESPONSE – 52 Hz – 35 kHz
CROSSOVER FREQUENCY – 2.5kHz
LOW FREQ. AMPLIFIER POWER – 60W
HIGH FREQ. AMPLIFIER POWER – 40W
MAXIMUM PEAK SPL- – 110 dB SPL – Full Bandwidth Pink Noise Measured
INPUT SENSITIVITY -10dBU

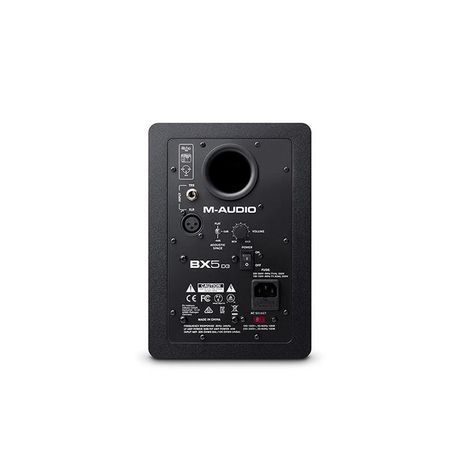

INPUT CONNECTORS – 1x XLR balanced input connector 1x TRS balanced/unbalanced input connector
INPUT IMPEDANCE – 10kΩ balanced, 20kΩ unbalanced
POLARITY – Positive signal at + input produce outward LF cone displacement
PROTECTION – RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse
POWER – Voltage: 100–120V, 50/60 Hz / 220–240V, 50/60 Hz Consumption: 100W
FUSE – 220–240V~ T1AL 250V / 100–120V~ T1.6AL 250V
CABINET – Vinyl-laminated high-acoustic-efficiency MDF
DIMENSIONS – (WIDTH X DEPTH X HEIGHT) 6.9” x 7.8” x 10” / 176 x 197 x 254 mm
WEIGHT – 12.3 lbs, 5.6kg
