Description

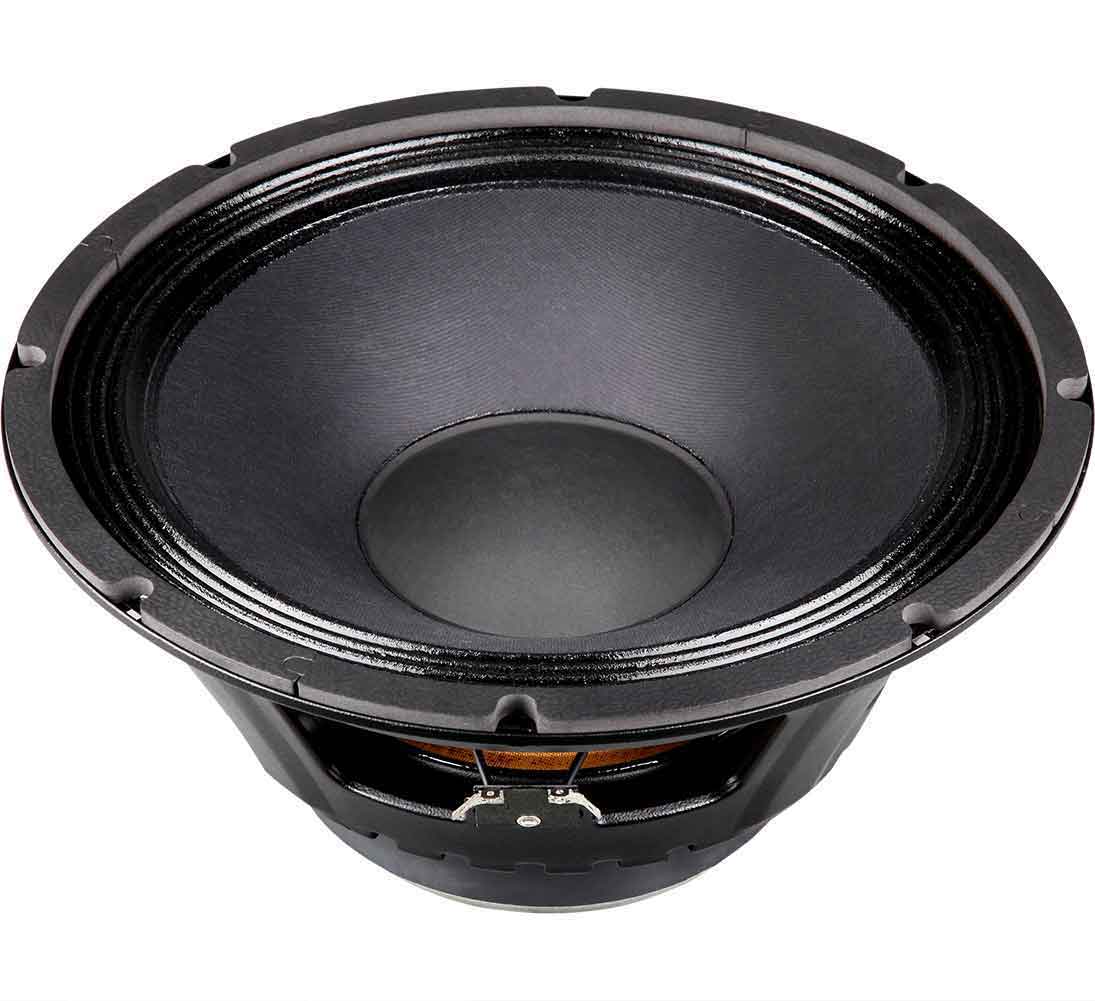

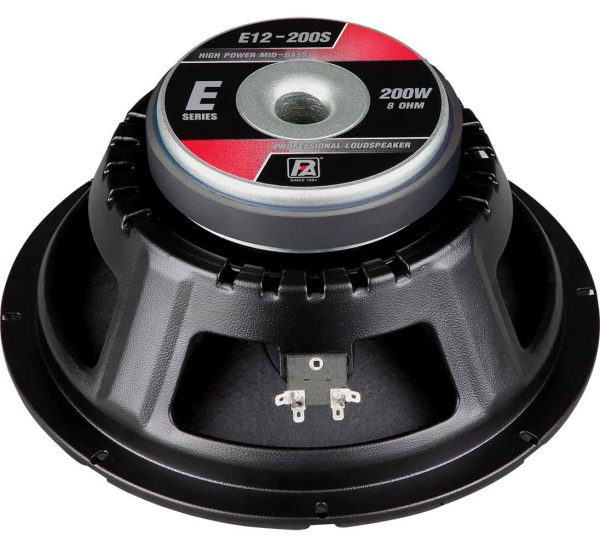

E12-200S
The P.Audio E12-200S is a high output low frequency transducer. The E12-200S is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels at low frequencies and is ideal for high level full range response in both live sound and recorded music venues. The operating bandwidth of the
| Nominal diameter | 305 mm/12 in |
| Power rating | 200 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 95 dB |
| Frequency range | 50-3500 Hz |
| Chassis type | Heavy Duty Stamp Steel |
| Magnet type | Ferrite |
| Magnet weight | 1.4 kg/49.4 oz |
| Voice coil diameter | 63.7 mm/2.5 in |
| Coil material | CCA-W |
| Former material | Glass fiber |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Single |
| X-max | 4.1 mm/0.161 in |
| Gap depth | 8 mm/0.3 in |
| Voice coil winding width | 16.2 mm/0.64 in |
| Packing dimension WxDxH (mm) | 330 x 330 x 180 |
| Net weight | 4.6 kg/10.8 lb |
| Shipping weight | 5.2 kg/11.5 lb |
