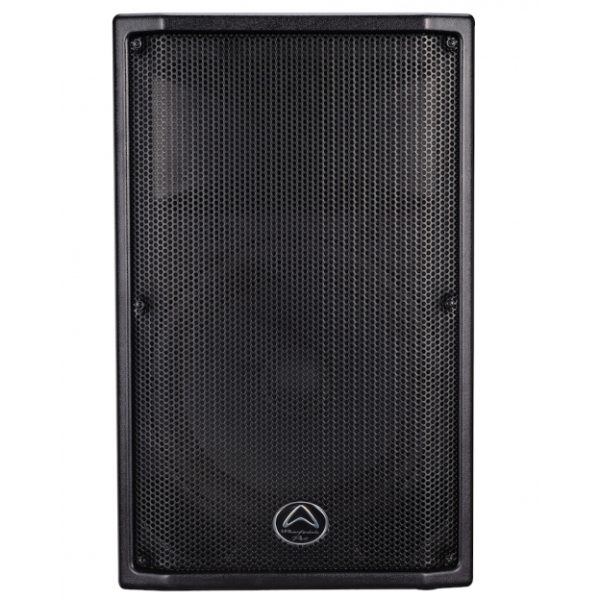

WARFEDALE – PSX115

SPECIFICATIONS

Model Name : PSX115
System type : Active 15” 2-way Bi-Amplified
Frequency Response (+/-3dB) : 50-20kHz
Sensitivity @ 1w / 1m : 97dB
Maximum SPL (peak @1m) : 130dB

LF transducer
Size : 381mm / 15”
Coil size : 44.5mm / 1.75”
Impedance : 4Ω

HF transducer
Type : Compression driver
Coil size : 44.5mm / 1.75″
Exit size : 25mm / 1″
Diaphragm material : Titanium
Impedance : 4Ω
HF Dispersion : 90° x 60°

Amplifiers
Low-Frequency Power Amplifier (Class D) : 350w Continuous / 700w Peak
High- Frequency Power Amplifier (Class AB) : 100w Continuous / 200w Peak
Crossover frequencies : HI PASS 2.4kHz LOW PASS 2.4kHz
EQ Controls : +/-12dB Gain for bass and treble
Power on protection : Power switch on / off mute
Thermal protection : Amplifier shutdown, auto reset
Driver, DC and Short Protection : Yes
Limiter indicator : Red LED
Power indicator : Green LED
Input type : Balanced
Input sensitivity : 0dB
Input connectors : TRS jack and Female XLR
Input impedance : 47kΩ Balanced
Max input level : 5v
Line output connector : Male XLR

AC Power details
Power supply : SMPS
AC Power options : 100v-120v and 200v-240v
Power on indicator : LED
Rigging / Mounting points : 4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)

Enclosure
Material : Injection moulded polypropylene
Colour : Black
Grille : 1.2mm steel

Dimensions unpacked
Height : 693mm / 27.3”
Width -front : 455mm / 17.9”
Width -rear : 262mm / 10.3″
Depth ; 401.8m / 15.1”

Dimensions packed
Height : 762mm / 30.0”
Width : 508mm / 20.0”
Depth : 425mm / 16.7”

Weight
Net weight : 19.2kg / 42.2lbs
Gross weight : 22.0kg / 48.4lbs
